規格 ：6-50MM
等級 ： U1 U2 U3

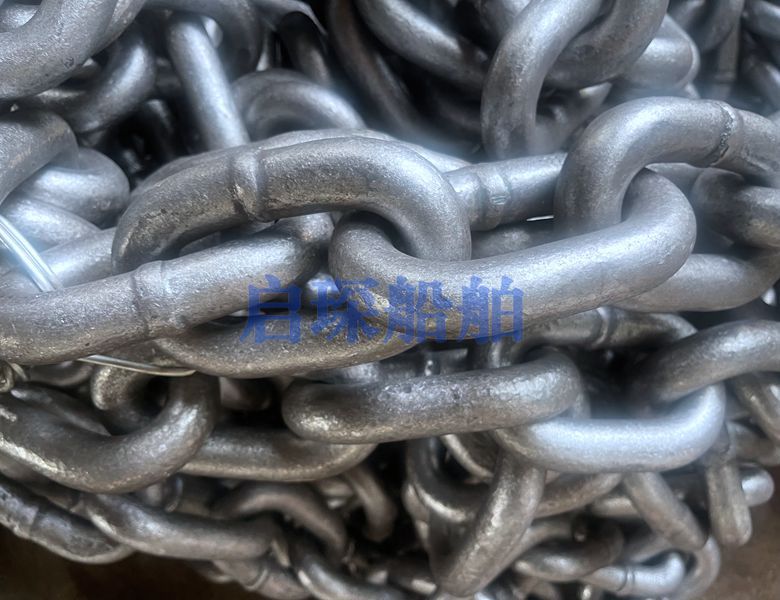

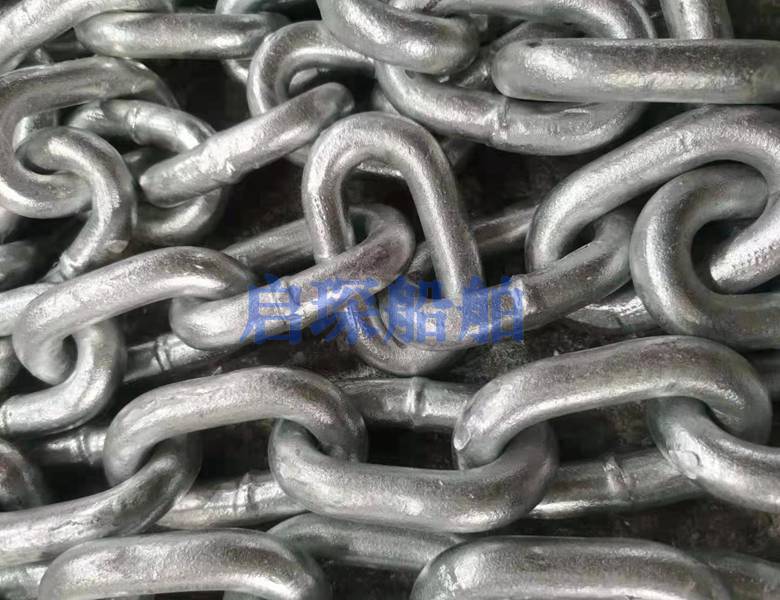

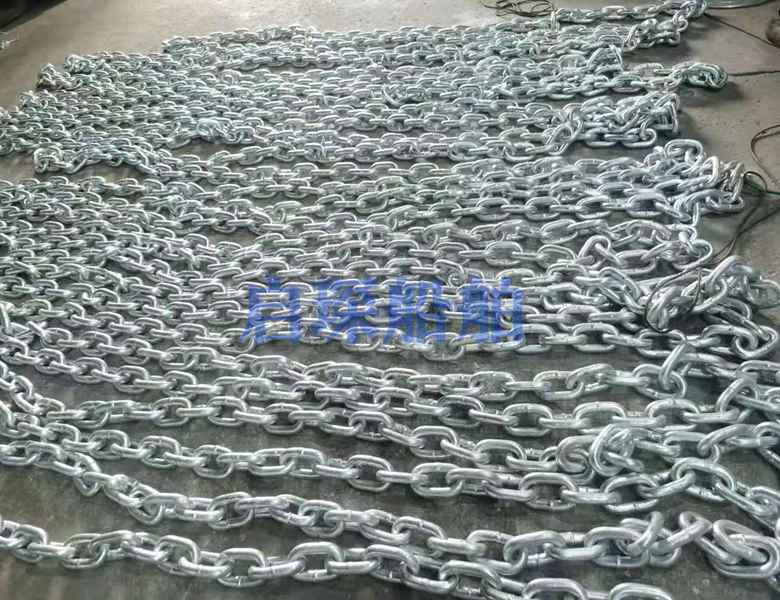

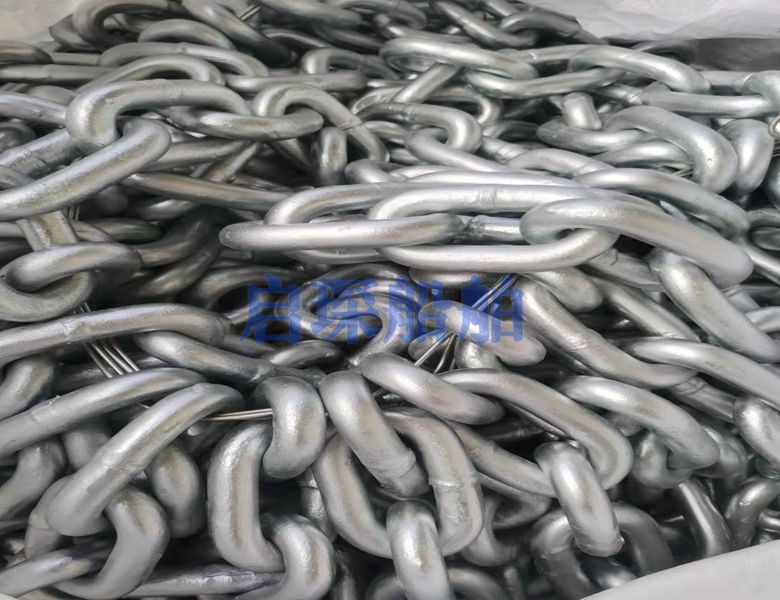

產品類別： 無檔錨鏈
表面處理 ：黑漆和鍍鋅
證書 ： 工廠證書 ，ZC ,ABS ,CCS ,NK ,KR ,DNV ,BV ,RINA,LR,RS
貨期 ： 10-15天
| 無檔錨鏈的破斷載荷、拉力載荷及單位重量 | ||||||
| 單位為千牛 | ||||||
| 公稱規格 a mm |
級別 | |||||
| BM1 | BM2 | BM3 | ||||
| 破斷載荷 | 拉力載荷 | 破斷載荷 | 拉力載荷 | 破斷載荷 | 拉力載荷 | |
| 6 | 13.3 | 6.6 | 18.6 | 9.3 | ||
| 7 | 18.1 | 9.0 | 25.2 | 12.6 | ||
| 8 | 23.7 | 11.8 | 33.0 | 18.5 | ||
| g | 30.0 | 14.9 | 41.8 | 20.9 | ||
| 10 | 37.0 | 13.4 | 51.6 | 25.8 | ||
| 11 | 44.7 | 22.6 | 62.4 | 31.2 | ||
| 13 | 57.8 | 28,8 | 82.6 | 41.2 | ||
| 14 | 69.9 | 34.8 | 101.9 | 51.0 | ||
| 16 | 94.7 | 47.1 | 132.3 | 66.2 | 184.8 | 92.4 |
| 18 | 113.3 | 56.4 | 157.8 | 78.9 | 221.1 | 110.6 |
| 19 | 133.7 | 66.4 | 187.2 | 93.6 | 260.6 | 130.3 |
| 21 | 155.5 | 77.3 | 217.3 | 108.6 | 303.4 | 151.7 |
| 22 | 179.1 | 89.1 | 250.9 | 125.4 | 349.4 | 174.7 |
| 24 | 213.3 | 106.0 | 298.9 | 149.9 | 415.8 | 207.9 |
| 26 | 250.1 | 124.4 | 350.8 | 175.4 | 488.0 | 244.0 |
| 28 | 290.1 | 144.3 | 406.7 | 203.8 | 566.0 | 283.0 |
| 30 | 333.0 | 165.6 | 467.5 | 234.2 | 649.8 | 324.9 |
| 32 | 378.9 | 188.4 | 531.2 | 265.6 | 739.3 | 369.6 |
| 34 | 427.7 | 212.7 | 599.8 | 299.9 | 834.6 | 417.3 |
| 36 | 479.5 | 238.5 | 672.3 | 336.1 | 935.7 | 467.8 |
| 38 | 534.3 | 265.7 | 748.7 | 374.4 | 1042.5 | 521.3 |
| 40 | 592.0 | 294.4 | 829.1 | 414.5 | 1155.2 | 577.6 |
| 42 | 652.7 | 324.6 | 915.3 | 457.7 | 1273.6 | 636.8 |
| 44 | 716.3 | 356.2 | 999.6 | 502.7 | 1397.8 | 698.9 |
| 46 | 782.9 | 389.3 | 1097.6 | 548.8 | 1527.8 | 763.9 |
| 48 | 852.5 | 423.9 | 1195.6 | 597,8 | 1663.5 | 831.7 |
| 50 | 926.1 | 460.0 | 1293.6 | 648.8 | 1805.0 | 902.5 |
