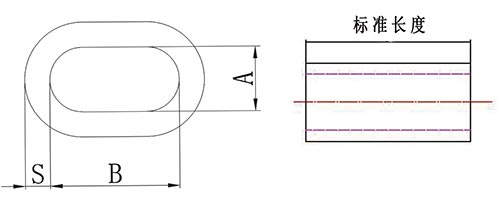

| 鋼索直徑 (MM) | 鑰套尺寸(MM) | 允許公差(內(nèi)孔) (MM) | 標(biāo)準(zhǔn)長度 (MM) | 重量(g) | ||
| A | B | s | ||||
| 6 | 11.6 | 18.2 | 6.6 | ±0.15 | 25 | 6.98 |
| 7 | 13.6 | 21.4 | 7.8 | ±0.15 | 30 | 11.44 |
| 8 | 15.4 | 24.2 | 8.8 | ±0. 20 | 34 | 16.6 |
| 9 | 17.3 | 27.2 | 9.9 | ±0. 20 | 38 | 23.5 |
| 10 | 19.1 | 30.0 | 10.9 | ±0. 20 | 42 | 31.68 |
| 11 | 21.1 | 33.2 | 12.1 | ±0. 30 | 47 | 43.2 |
| 12 | 23.0 | 36.2 | 13.2 | ±0. 30 | 50 | 54.5 |
| 13 | 25.0 | 39.2 | 14.2 | ±0. 30 | 55 | 71.4 |
| 14 | 26.9 | 42.2 | 15.3 | ±0. 30 | 59 | 88.5 |
| 16 | 30.9 | 48.4 | 17.5 | ±0. 30 | 67 | 132.8 |
| 18 | 34.8 | 54.4 | 19.6 | ±0. 30 | 76 | 191.8 |
| 20 | 38.5 | 60.2 | 21.7 | ±0. 30 | 84 | 260.4 |
| 22 | 42.7 | 67.0 | 24.3 | ±0. 40 | 92 | 349 |
| 24 | 46.4 | 72.8 | 26.4 | ±0. 40 | 101 | 452 |
| 26 | 50.3 | 78.8 | 28.5 | ±0. 70 | 109 | 576.2 |
| 28 | 54.5 | 85.4 | 31 | ±0. 70 | 118 | 726 |
| 30 | 58.1 | 91.2 | 33 | ±0. 70 | 126 | 882 |
| 32 | 62 | 97.2 | 35.2 | ±0. 70 | 134 | 1074 |
| 34 | 66.2 | 104 | 37.8 | ±0. 70 | 143 | 1300 |
| 36 | 69.8 | 109.6 | 39.8 | ±0. 70 | 152 | 1538 |
| 38 | 73.5 | 115.4 | 41.9 | ±0. 70 | 160 | 1808 |
| 40 | 77.2 | 121.1 | 44 | ±1. 50 | 168 | 2080 |
| 42 | 81.2 | 127.4 | 46.2 | ±1.50 | 176 | 2423 |
| 44 | 85 | 133.4 | 48.4 | ±1.50 | 184 | 2765 |
| 46 | 89 | 139.6 | 50.6 | ±1.50 | 192 | 3175 |
| 48 | 92.8 | 145.6 | 52.8 | ±1.50 | 200 | 3583 |
| 50 | 96.6 | 151.6 | 55.0 | ±1.50 | 208 | 4055 |
| 52 | 100.4 | 157.6 | 57.2 | ±1.50 | 216 | 4700 |
| 54 | 104.4 | 163.8 | 59.4 | ±1.50 | 224 | 5088 |
| 56 | 108.2 | 169.8 | 61.6 | ±1.50 | 232 | 5649 |
| 114.4 | 179.6 | 65.2 | ±1.50 | 240 | 6419 | |
| 248 | 6944 | |||||
