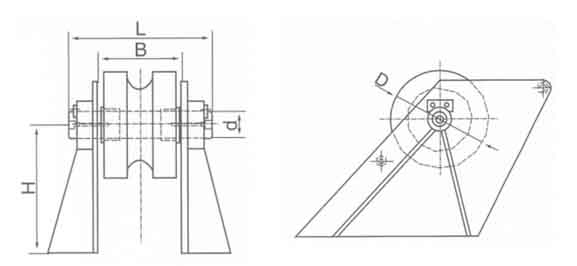

型號 | 適用鏈徑 | D | d | L | B | H | 重量(Kg) | |
14 | 12.5-14 | 154 | 26 | 164 | 94 | 150 | 12.7 | |
17.5 | 16-17.5 | 192 | 32 | 186 | 108 | 170 | 21.0 | |
20.5 | 19-20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 | |
24 | 22-24 | 264 | 42 | 236 | 142 | 240 | 50.0 | |
28 | 26-28 | 308 | 48 | 262 | 160 | 280 | 74.0 | |
32 | 30-32 | 352 | 54 | 292 | 178 | 310 | 104.9 | |
36 | 34-36 | 396 | 58 | 319 | 201 | 360 | 144.4 | |
40 | 38-40 | 440 | 64 | 349 | 219 | 390 | 189.8 | |
44 | 42-44 | 484 | 70 | 377 | 239 | 430 | 239.9 | |
48 | 46-48 | 528 | 74 | 405 | 259 | 470 | 305.5 | |
52 | 50-52 | 572 | 78 | 430 | 280 | 510 | 370.3 | |
56 | 54-56 | 616 | 82 | 466 | 302 | 540 | 453.6 | |
60 | 58-60 | 660 | 88 | 492 | 320 | 580 | 572.3 | |
64 | 62-64 | 704 | 94 | 526 | 342 | 620 | 687.5 | |
68 | 66-68 | 748 | 98 | 552 | 360 | 660 | 832.3 |
